1971 Mgb Wiring Diagram

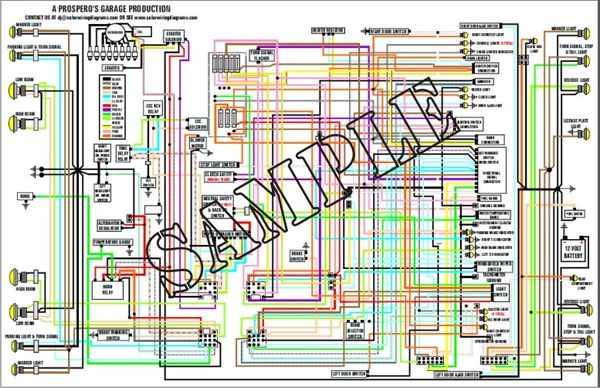

Some excellent easy to read and follow wiring diagrams which are colour coded for each of the fused circuits. All diagrams are laminated in plastic for ease of use and durability.

1970 Mgb Horn Not Working Mgb Gt Forum Mg Experience Forums The Mg Experience

The park wire brownlight-green is connected to terminal 2.

1971 mgb wiring diagram. When ever I find useful and interesting information about the MG MGB GT or any other classic cars I upload it to these pages for future. Cblankin Charles Chip Blankinship. Our most popular manual is the 1964-1978 MGB Electrical Wiring Diagrams PDF.

MG MGB 1971 Repair Manual by. Wiring Diagrams for MGB MGC. 1971 MGB GHN5 258001-267579 GHD5 258001-268280 1972 MGB GHN5 267580-294250 GHD5 268281-296000.

Wiring Diagram for MGB Export 1969 1970 Models. MG - MGB - Workshop Manual - 1977 - 1977. Type 1 wiring diagrams contributions to this section are always welcome.

Fuse box connections and colours for MGB GT 1972 7 5 3 1 8 6 4 2 All fuses are 17A current rated and 35A blow rated Terminal 1-2 fuse A Terminal 3-4 fuse B Terminal 5-6 fuse C Terminal 7-8 fuse D Terminal number--. Click links for 33 different wiring diagrams for MGB and MGC large format in color. Interconnecting wire routes may be shown approximately where particular receptacles or fixtures must be on a common circuit.

Print it front and back or two pages. Essential in tracing and repairing old wiring these follow the original wiring colours. Updated - December 21.

Wiring Diagram for MGB Export 1971 1972 Models. Quantity required - 1. MGB Alternator Conversion Installation Instructions For MGA 1962 to 1967 MGB PART 130-078 130-088.

1971 mgb wiring diagram wiring diagram datasource. 12 MG MGB Workshop Owners Service and Repair Manuals. Architectural wiring diagrams performance the approximate locations and interconnections of receptacles lighting and long-lasting electrical facilities in a building.

In the table below you can see 0 MGB Workshop Manuals0 MGB Owners Manuals and 3 Miscellaneous MG MGB downloads. MG MGB The MGB is a two-door sports car manufactured and marketed by MG Cars and its successors as a four-cylinder soft-top roadster 1962-1980. Covers 1971 - 1972 - 1973 - 1974 MGB 1971 - 1972 - 1973 EARLY 1974 MGB-GT Factory wire colors specific to your car or truck large size clear text easy to read.

Thought I would share them for those who havent seen this site before. Use the key and the diagrams in the following steps to rewire for the alternator. MG - MGB - Workshop Manual - 1968 - 1971.

Ground vehicles wiring diagram with the generator still intact. Wiring Diagram for MGB Export 1970 1971 Models. Wiring Diagram for MGB 1970 1971 Models.

Remove all the wires from the control box as show in Figure 9b. Joined 15 years ago. Automotive Wiring and Electrical Systems by S-A Design.

When my car was converted to the V8 not much thought was put into the wiring other than running a wire across the top of the engine to the alternator and down to the starter bolt more on this later and a. The park wire brownlight-green is connected to. Mgb Wiring Diagram.

It is a complete color coded set of wiring diagrams for US and UK 63 - 80 year models. The slow-speed wire redlight-green is connected to terminal 6. 1964-1978 MGB Electrical Wiring Diagrams PDF Updated.

These PDF files can print full size on 11 x 17 paper. Get your hands on the complete MG factory. This manual covers cars SUVs and trucks from.

The Access Tools Car Opening Manual contains over 600 pages of step-by-step directions pictures and a diagram for virtually every vehicle since 1979. All diagrams include the complete basic car interior and exterior lights engine bay starter ignition and charging systems gauges under dash harness rear clip etc. Scalextric MGB Slot Cars.

1971 MGB GHN5 258001-267579 GHD5 258001-268280 1972 MGB GHN5 267580-294250. Taken from the renowned Bentley MGB manual and published by Autowire these wiring diagrams cover all British and US MGB and MGC cars. 502087A - MGB HEADLAMP DIP SWITCH - 1962-1966.

My wiring diagrams do not show terminal numbers for this lock. The fast-speed wire bluelight-green is connected to terminal 8. 1971 Mgb Wiring Diagram Ignition Switch Connections mgb stuff org uk April 13th 2019 - Ignition Switch Connections 1971 72 With the key inserted and turned to the first position accessories terminals 1 brown and 4 white green are connected together My wiring diagrams do not show terminal numbers for this.

The 12v supply wire green greenpink from 1971 is connected to terminal 4. Oct 28 2018 0126 PM. 1971 MGB Wiring diagram.

Along with variants including the MGB GT three-door 22 coupé 1965-1974 the six-cylinder roadster and coupé MGC 1967-1969 and the eight-cylinder 22 coupé the MGB GT V8 1973-1976. Mgb gt overdrive wiring diagram. 1977 MGB overdrive transmission more wiring 1980 transmission 4-speed transmission bolt on less Sets appears in.

MG - MGB - Parts Catalogue - 2016 - 2016 German MG - MGB - Workshop Manual - 1977. Fitted upto chassis number- GHND3-90363. Wiring Diagram for MGB Export 1971 1972 Models with Seat Belt Warning.

I keep a copy in my car just in case I have a problem with the electrics whilst on the road. As in this case on John Halls 1973 MGB in Queensland Australia. I am replacing the starter on my 1971 MGB and bubba has had a go at removing the starter and left me with wires going to the starter solenoid.

All diagrams use factory colors including tracers when applicable. 6264 MGB - from Bentley A8753AW 6467 MGB - from Bentley B51798 6768 MGB - from Bentley E1898W 6869 MGB - from Bentley E2333W. Ive imported the car to Canada near Toronto.

Get 1971 Mgb Wiring Diagram PNG. BritshWiring is your complete source for wiring harnesses components and accessories for your classic car restoration project. Hello all I found this link when I started my restoration project.

Wiring Diagram for MGB 1969 1970 Models. MGB TOURER AND GT Special Tuning PDF. Diagram 3 - 6768 mgb from bentley e1898w fuse box b bg gb rear window defroster switch - gt only radio n cigar lighter b h i g h b e a m s high beam indicator.

Best MGB wiring diagrams Ive ever seen. Sign in to contact. We have 12 MG MGB manuals covering a total of 67 years of production.

A switch of this type was fitted to MGB and TR6. With the key inserted and turned to the first position accessories terminals 1 brown and 4. Terminal 1 on the switch corresponds to Terminal 3 on the diagram.

Alternator Not Charging Mgb Gt Forum Mg Experience Forums The Mg Experience
